Fabricante profissional de máquina/maquinaria do painel de sanduíche de poliuretano

Fabricante profissional de poliuretano máquina/maquinaria do painel de sanduíche
visões gerais do produto


descrição do produto

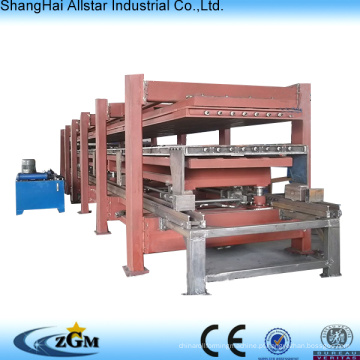

A. Specifications of sandwich panels producible: Max. length                                        6000mm Max width                                           1200mm Thickness                                          50~150mm B. Equipment used 1. One “2+2” multi-layer laminator for “6×1.2m” panels 2. One set of PU foaming machine and installation for pre-storing materials  C. Operating principle            The multi-layered laminator is consisted of the press and the rail stands. Two worktables are to move into the press and the other two stay on rail stands. Initially, put the top and the bottom facing sheets inside of mould frames and then do the necessary sealing work. After that, feed the worktables into the press. When worktables inside the press moves out orderly, the other two feed in at the same time. Upon the finish of feeding, the press will close and slant at a angle, waiting for the injection PU raw materials from the PU mixing head into different panels. Meanwhile materials start foaming and curing. At this time, mould frames on worktables moved out can be opened and the finished products can be unloaded to get ready for next production cycle.  D. Constituents of equipment  a. One “2+2” multi-layer laminator for “6×1.2m” panels The laminator is used to make sandwich panels with the max. length of 6m, max. width of 1.2m and the thickness from 50~150mm.  1. Main technical parameters  Thickness of a panel                            50~150mm Max bearing force                                  0.2Mpa/cm2 Moving speed of worktable                  20m/min Pressing speed                                     10~30mm/s Working temperature of worktable      0~50℃  Angle that press can slant                    0~8°  2. Constituents of equipment            It is consisted of the main machine, hydraulic driving system, worktables, worktable supporters, worktable-heating system, bridge crane for mixing head, antiskid platform and electrical control system. 2.1 Main machine            To be made up of the frame, chassis, slanting mechanism, rails and adjustable beam. 2.2 Hydraulic driving system            The system includes the hydraulic station, 10 oil cylinders (8 for vertical movement and 2 for slanting use), three sets of oil pumps (one for vertical movement, another for slanting use and the other for sustaining pressure) as well as suitable hi-pressure oil hoses and valves. Power: 11kw 2.3 Worktable Size: 6.4m×1.4m×60mm (Length×Width×Thickness) Worktables are made of extruded aluminum alloy. Five worktables (one is fixed), auto-feeding mechanism and mould locators are provided.  Power: 0.55kw×8 2.4 Worktable supporters            Including the supporters and rails. (To be put on the left and right sides of the main machine) 2.5 Worktable heating system            It is made up of the medium heating installation, pump units, pipes and suitable temperature control. (Two sets, one on the right, the other on the left) Power: 24kw×2 2.6 Bridge crane for the mixing head            The crane comprises the frame, two-dimension (in X and Y directions) mobile trolley and spring balancer in Z direction. 2.7 Anti-skid platform            To be put on the sides of left and right worktable supporters and under the mobile crane for mixing head movement. (Required while operating on the worktables) 2.8 Electric control system            Adopting central control by a panel, the system is equipped with fitting press buttons, relays, temperature control instrument, etc..             b.Hi-pressure PU foaming machine and installation for pre-storing materials  Tank assembly:            Producing tank: Two 300L jacketed tanks with insulation layer on the outside, maximum allowable pressure 0.4MPa. Each tank is with a 0.75kw agitator assembly and the safety valve, pressure-reducing valve, pressure gauge, three-position liquid-level control switch and fitting valves and pipes.            Preparatory tank: Two 2000L jacketed tanks with insulation layer on the outside, maximum allowable pressure 0.1MPa. Each tank is with an 1.5kw agitator assembly and the safety valve, pressure-reducing valve, pressure gauge, magnetic liquid-level indicator, fitting valves and pipes as well as the ladder, platform and fence rail.            Two pipe-type heat exchangers with working area of 1.8m2.            Temperature control system with a 18000kcal. water-chiller, a 12kw heater, 5 sets of digital temperature control instruments, a water tank, a water pump and hydraulic solenoid valve.            Automatic material-supplementing installation: two material-loading tanks included; material loading done either in an automatic or a manual way.            Material filtration part includes two wire-type filters. Pump assembly:            Two hi-pressure flowrate-variable plunger pumps: 3000g/s throughput (max) when mixing ratio is 1:1 ; nominal pressure at 25Mpa; motor power being 11kw×2, revolution at 1450r/min; with sensors and alarm to limit maximum and minimum pressure.            Flowrate sensor: instantaneous flowrate indication.            An switcher between high pressure and low pressure is equipped.            Two magnetic-driving connectors to prevent material’s dripping. Hi-pressure mixing head:            One hi-pressure mixing head is equipped, co-jetting pressure adjustable. Cleaning installation:            One cleaner is fit with one 25L stainless steel tank with the air-blowing valve, hydraulic cleaning valve, fitting pipes, electromagnetic valve, safety valves, etc. Hydraulic control system:            One hydraulic station; one gear pump; motor power at 5.5kw; the fitting filter, accumulator, pressure gauge, pipes, valves like overflowing valve, check valve, direction-changing valve and distributor valve are included. Electrical control:            One control cabinet, on which pressure, temperature, flowrate, alarm and digital display are given.            One SIMENS Model S7-200 PLC with a 8″TAIDA contact screen is equipped.

II. Facing sheet profiling part

A. Equipment used 1. Decoiler                                    2 sets 2 Film coverer                              2 sets 3 Forming machine                    2 sets 4. Hydraulic cross-cutter            2 sets 5. Flipper                                       1 set 6. Powered roller conveyor         2 groups 7. Auto control of profiling line    2 sets B. Production process Facing sheet profiling part divides into two lines.  One line is for forming outer roof. The other line is for forming inner roof as well as for outer and inner wall. Each line is made up of one decoiler, one film-coverer, one forming machine, one hydraulic clipper and one group of roller conveyors. Facing sheet after being decoiled and formed is cut into required length by a hydraulic clipper while the forming machine stops running.  C. Constituents of equipment 1.Hydraulic decoiler It is used for unwrapping and hydraulically tensioning color steel with the coil of dimension 508mm in internal diameter and 1,250mm in width and maximum load of 10T. The decoiler includes a hydraulic loading trolley. Power: 4.5kw. 2.Forming machine (profile drawing attached) This machine is used to form color-steel facings, having platelike structure, welded frame and gear-chain transmission. Specification of color-steel facings for wall panels and internal roof: 1,000mm in width and 0.35~0.8mm in thickness. Specification of color-steel facings for external roof shall be 1,200mm in width and 0.35~0.8mm in thickness. For forming external roof, the machine shall be with 21 pairs of forming rollers of 75mm in diameter and with the power of 5.5kw, maximum forming speed 8m/min variable by changing frequency. For forming wall panels and internal roof, the machine shall be with 10 pairs of forming rollers of 75mm in diameter and with the power of 4kw, maximum forming speed 8m/min variable by changing frequency. 3.Cross-cutter It is employed to hydraulically cut forming color-steel facings into pre-determined length at request with a guillotine actuated by the hydraulic station of decoiler. PLC controller and length detector are adopted.  4.Film-covering installation This installation is used to cover film to the surface color steel before forming in case of scratch. Size of a PVC film coil: dimension 72~80mm(inner diameter); dimension 400mm(outer diameter).

III. Optional equipment

A.Two lifting and parallel moving installation with vacuum suckers       Used to unload finished sandwich panels on worktables and also to move facing sheets from their stacking area onto worktables.  Lifting and parallel movement are done with following parameters: Max. moving distance:                                                11m Max. lifting height:                                                        2m Max. lifting weight:                                                        250kg Vacuum system includes the vacuum pump and suckers. Operations are controllable by PLC programs that can be preset. B. One flipper      For turning over the profiled wall sheet 180 degrees.      This machine is consisted of a steel base, flipping actuator and flipping frame. Power: 0.75kw. C. Powered roller conveyor      Two groups of roller conveyors used to convey profiled facing sheet are equipped.       Length: 28m each group. Power: 2.2kw×2.Running speed: 20m/min.  D. In additional to “2+2” multi-layer laminator for “6×1.2m” panels, the clients can, according to different usage, order a “2+2” laminator for “8×1.2m” panels, or a “2+2” laminator for “8×1.2m” panels, or a “2+2” laminator for “12×1.2m” panels, or a “1+2” laminator for “14×3m” panels or a custom-made one. E. Forming machine to be supplied in accordance with profile drawing give by clients. F. One “2+2” multi-layer laminator for “12×1.2m” panels      The laminator is used to make sandwich panels with the max. length of 12m, max. width of 1.2m and the thickness from 50~150mm.  1. Main technical parameters  Thickness of a panel                                             50~150mm Max bearing force                                                   0.2Mpa/cm2 Moving speed of worktable                                   10m/min Pressing speed                                                      10~30mm/s Working temperature of worktable                      0~50℃  2. Constituents of equipment      It is consisted of the main machine, hydraulic driving system, worktables, worktable supporters, worktable-heating system, bridge crane for mixing head, antiskid platform and electrical control system. 2.1 Main machine      To be made up of the frame, chassis, rails and adjustable beam. 2.2 Hydraulic driving system      The system includes the hydraulic station, 16 oil cylinders for vertical movement, two sets of oil pumps (one for vertical movement, the other for sustaining pressure) as well as suitable hi-pressure oil hoses and valves.      Power: 15kw 2.3 Worktable      Size: 12.4m×1.4m×60mm (Length×Width×Thickness)      Worktables are made of extruded aluminum alloy.      Five worktables (one is fixed), auto-feeding mechanism and mould locators are provided.       Power: 0.75kw×8 2.4 Worktable supporters      Including the supporters and rails. (To be put on the left and right sides of the main machine) 2.5 Worktable heating system      It is made up of the medium heating installation, pump units, pipes and suitable temperature control. (Two sets, one on the right, the other on the left)      Power: 24kw×2 2.6 Bridge crane for the mixing head      The crane comprises the frame, two-dimension (in X and Y directions) mobile trolley and spring balancer in Z direction. (Mechanical movement in X direction.)      Power: 0.55kw 2.7 Anti-skid platform      To be put on the sides of left and right worktable supporters and under the mobile crane for mixing head movement. (Required while operating on the worktables) 2.8 Electric control system      Adopting central control by a panel, the system is equipped with fitting press buttons, relays, temperature control instrument, etc..       G. Air-jetting low-pressure PU foaming machine and pre-storing installation      Tank assembly:      Producing tank: Two 300L jacketed tanks with insulation layer on the outside, maximum allowable pressure 0.1MPa. Each tank is with a 0.75kw agitator assembly and the safety valve, pressure-reducing valve, pressure gauge, three-position liquid-level control switch and fitting valves and pipes.      Preparatory tank: Two 2000L jacketed tanks with insulation layer on the outside, maximum allowable pressure 0.1MPa. Each tank is with an 1.5kw agitator assembly and the safety valve, pressure-reducing valve, pressure gauge, magnetic liquid-level indicator, fitting valves and pipes as well as the ladder, platform and fence rail.      Two pipe-type heat exchangers with working area of 1.8m2.      Temperature control system with a 18000kcal. water-chiller, a 12kw heater, 5 sets of digital temperature control instruments.       Automatic material-supplementing installation: two material-loading tanks included; material loading done either in an automatic or a manual way.      Material filtration part includes two wire-type filters. Pump assembly:      Two hi-pressure flowrate-variable plunger pumps: 3000g/s throughput (max) when mixing ratio is 1:1; motor power being 7.5kw×2, revolution at 1450r/min; with sensors and alarm to limit maximum and minimum pressure.      Flowrate sensor: instantaneous flowrate indication.      One air-jetting low-pressure mixing head:      There is one air-jetting mixing head of low pressure.      One head cleaner is supplied with one 25L stainless steel tank with the air-blowing valve, hydraulic cleaning valve, fitting pipes, electromagnetic valve, safety valves, etc. Electrical control:      One control cabinet, on which pressure, temperature, flowrate, alarm and digital display are given.      Contact screen control is equipped.

embalagens & carregamento

fábrica & processo
informações da empresa

Grupo de Produto : Perfiladeira de painel de sanduíche > Linha de produção de painel sanduíche PU
